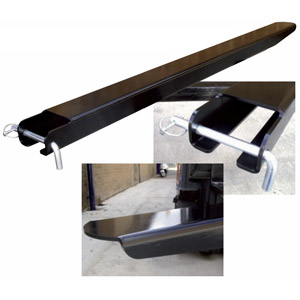

Fork Extensions





Fork Extensions provide a simple, but effective method of handling the occasional long and awkward load that extends past the tips of the parent fork arm (maximum overhang 50%).



Standard Features:



Tip thickness 6mm for ease of splitting packs

Fully pressed profile with rounded corners

Zinc plated heel pins for safe attachment to truck

Painted black



Optional Features:



Triangular extensions for lifting paper rolls

Conical Extensions for Lifting Paper Rolls

Rubber Bonded Fork Extension Sleeves also available:



Specifications:



Model	Length (mm)	Model	Length (mm)	Model	Length (mm)
IFE448HDBO-NF	1220	IFE548HDBO-NF	1220	IFE648HDBO-NF	1220
IFE454HDBO-NF	1372	IFE554 HDBO-NF	1372	IFE654HDBO-NF	1372
IFE460HDBO-NF	1525	IFE560HDBO-NF	1525	IFE660HDBO-NF	1525
IFE463HDBO-NF	1600	IFE563HDBO-NF	1600	IFE663HDBO-NF	1600
IFE465HDBO-NF	1650	IFE565 HDBO-NF	1650	IFE665HDBO-NF	1650
IFE472 HDBO-NF	1829	IFE572 HDBO-NF	1829	IFE672 HDBO-NF	1829
IFE478 HDBO-NF	1981	IFE578 HDBO-NF	1981	IFE678HDBO-NF	1981
IFE484HDBO-NF	2134	IFE584HDBO-NF	2134	IFE684HDBO-NF	2134
IFE496HDBO-NF	2438	IFE596HDBO-NF	2438	IFE696HDBO-NF	2438
