Fork Mounted Hooks
Available in ‘Fixed’ and ‘Adjustable’ versions
Fixed Fork Mounted Hooks
Fork Mounted Hooks provide an economical and safe method of converting a fork lift truck into a mini mobile crane. Multiple lifting positions can be achieved along the fork blade.
Standard Features:
Two fixed lifting points along the fork blade
Supplied complete with single swivel hook and bowshackle
Zinc heel pins for safe attachment to truck
Painted bright orange for safety
Specifications:
| Model | Capacity (kg) @ centre 200mm |
Capacity (kg) @ centre 600mm |
Max fork (mm) | Fork centres (mm) |
|---|---|---|---|---|
| IFH-1.0 | 1000 | 1000 | 150 x 50 | 481 |
| IFH-2.0 | 2000 | 2000 | 150 x 50 | 481 |
| IFH-3.0 | 3000 | 3000 | 150 x 50 | 481 |
| IFH-4.0 | 4000 | 4000 | 150 x 50 | 481 |

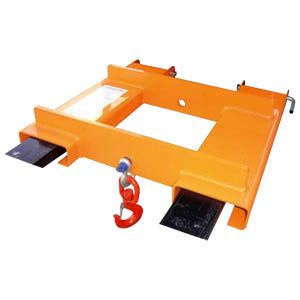

Adjustable Fork Mounted Hook
The Adjustable Fork Mounted Hook provides a quick and economical method of the lifting and positioning of unpalletised loads. Multiple lifting positions can be achieved by the correct positioning of the attachment along the fork blade.
Standard Features:
Completely adjustable along the fork blade (except taper)
Supplied complete with single swivel hook and bow shackle
Zinc twist screws for safe attachment to truck
Painted bright orange for safety
Specifications:
| Model | Capacity (kg) | Max fork (mm) | Fork centres (mm) |
|---|---|---|---|
| IAH-1.0 | 1000 | 150 x 60 | 481 |
| IAH-1.5 | 1500 | 150 x 60 | 481 |
| IAH-2.0 | 2000 | 150 x 60 | 481 |
| IAH-2.5 | 2500 | 150 x 60 | 481 |
| IAH-3.0 | 3000 | 150 x 60 | 481 |
| IAH-4.0 | 4000 | 150 x 60 | 481 |
| IAH-5.0 | 5000 | 150 x 60 | 481 |
