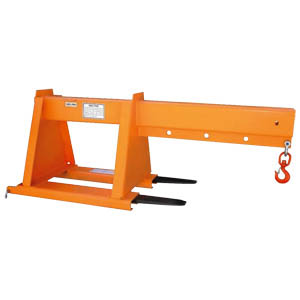

Fork Mounted Jib

When height is not at a premium, but maximum lift capacity is critical, the Fork Mounted Jib allows the movement of long and awkward loads from inaccessible locations with the potential of 4 different lifting centres.



Standard Features:

Multi hook positioning from 1000 – 1750 load centres

Supplied complete with swivel hook and bow shackle

Zinc plated heel pins for safe attachment to truck

Painted bright orange for safety

Specifications:

Model	Nominal capacity (kg) @ centres				Max Fork	Fork centres
	1000mm	1250mm	1500mm	1750mm	(mm)	(mm)
IFJ-1.0-OP	1000	800	600	300	150 x 50	435
IFJ-1.5-OP	1500	1000	800	400	150 x 50	435
IFJ-2.0-OP	2000	1500	1000	600	150 x 50	435
IFJ-3.0-OP	3000	2000	1500	1000	150 x 50	435
IFJ-4.0-OP	4000	3000	2500	2000	150 x 50	435
IFJ-5.0-OP	5000	4000	3300	2800	150 x 50	435
