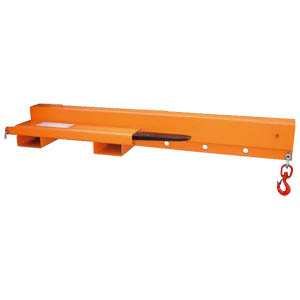

Low Profile Jib

When height is at a premium the Low Profile Jib allows the movement of long and awkward loads from in accessible locations, with the potential of 5 different lifting centres.



Standard Features:

Multi hook positioning from 500 – 1750 load centres

Supplied complete with swivel hook and bow shackle

Four way pocket entry for ease of storage

Zinc plated heel pins for safe attachment to truck

Painted bright orange for safety



Specifications:



Model	Nominal capacity (kg) @ centres					Max Fork	Fork centres
	500mm	1000mm	1250mm	1500mm	1750mm	(mm)	(mm)
ILP-1.0-OP	1000	700	500	400	250	150 x 50	281
ILP-1.5-OP	1500	1100	900	650	450	150 x 50	281
ILP-2.0-OP	2000	1600	1200	900	600	150 x 50	281
ILP-3.0-OP	3000	2100	1600	1100	850	150 x 50	281
ILP-4.0-OP	4000	3200	2500	1900	1100	150 x 50	281
