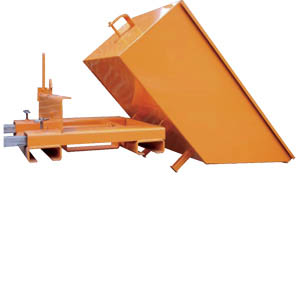

Automatic Low Level Skip
The skip can be easily positioned at the end of a conveyor, dross shoot or manufacturing line to collect bi-products that are below waste level. Invicta’s unique automatic tipping mechanism enables the forklift driver to tip the skip at high level without leaving the safety of his seat, with the added benefit of a manual handle for low level tipping.
Standard Features:
Low loading height
Reinforced leading edge and body sides
4 way fork pocket entry
Secondary Locking Mechanism to prevent accidental discharge
Fully seam welded for retention of fluids
Manual handle override
Zinc plated twistscrews for safe attachment to truck
Painted bright orange for safety
Optional Features:
125mm diameter nylon castors
Colour finish for waste separation/department
Specifications:
Model | Nominal capacity (m3) |
Capacity (kg) | Max fork (mm) | Fork centres (mm) | Body length (mm) | Body width (mm) |
Body height (mm) |
IALS-1 | 0.7 | 300 | 150 x 60 | 683 | 1380 | 910 | 540* |
IALS-2 | 1.0 | 600 | 150 x 60 | 683 | 1380 | 1300 | 540* |
*Add 160mm to height to give overall skip height
